Web Sensor CO2 mätare för ventilationskanal med Ethernet - kopie

Web Sensor CO2-transmitter med sond för montage i ventilationskanal och nätverksanslutning - Ethernet.

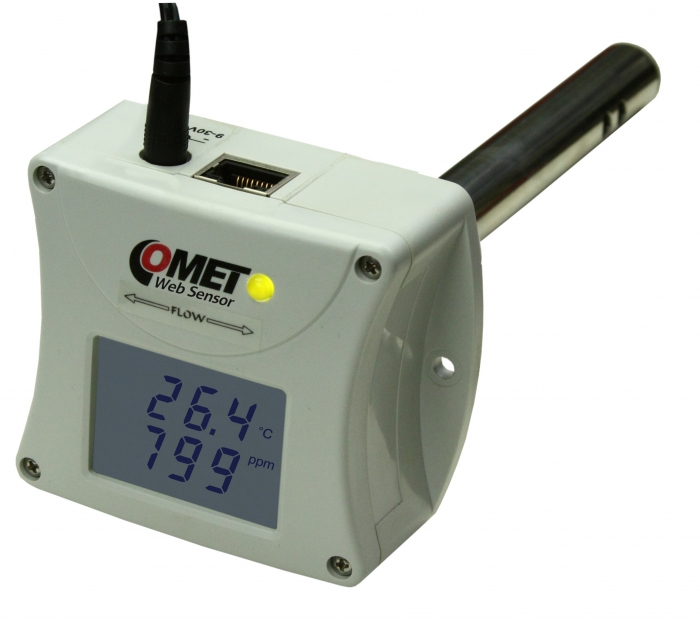

Web Sensor för CO2 med sond för montage i ventilationskanal.

CO₂-mätaren är byggd runt en tvåstråles NDIR-sensor med dubbla våglängder som automatiskt kompenserar för sensorns åldrande. Sensorn är motståndskraftig mot nedsmutsning och erbjuder underhållsfri mätning och utmärkt långtidsstabilitet. Unik autokalibrering som eliminerar behovet av periodisk kalibrering i fält.

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):

Extended measuring range: 0 to 10 000 ppm
Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

Art nr

T6545
Garanti

3 År

6 390 SEK

Köp

Send request

Tekniska specifikationer

Mätvärde

Temperatur

Relativ luftfuktighet

Beräknade värden (daggpunkt…)

CO2

TEMPERATURE SENSOR

Measuring range -30 to +60 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ± 2,5 % RH

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.6°C at ambient temperature T<25°C and RH>30%

Resolution 0.1 °C

CO₂ SENSOR

Measuring range 0 to 5000 ppm

Accuracy ±(50ppm +3% from reading) at 25°C and 1013hPa

Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C

Channels internal CO₂ sensor

Output Ethernet

Measuring interval 15 s

Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols E-mail, SNMP Trap, Syslog

Power 9-30 Vdc

Protection class IP30 electronics; IP20 sesors

Dimensions 89 x 73 x 240 mm; stem length 130 mm

Weight approx. 260 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events

● communication protocols SNMP, Modbus TCP, SOAP, XML

● webserver to display current and recorded values

● alarm indication via email

● selected models with PoE

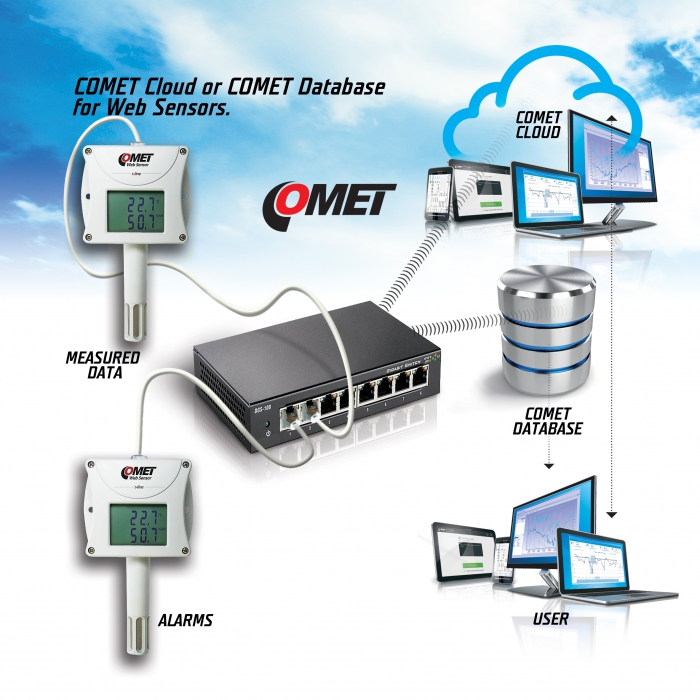

● data analysis in COMET Database software

Web Sensor CO2 mätare för ventilationskanal med Ethernet - kopie

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):
